■ 基本信息
啟動子: | CMV |
復制子: | pUC |
終止子: | SV40 poly(A) signal |
質粒大小: | 7384bp |
原核抗性: | Kan |
真核抗性: | G418 |
克隆菌株: | Stbl3 |
培養(yǎng)條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無須誘導，瞬時表達 |
5'測序引物: | CMV-F：CGCAAATGGGCGGTAGGCGTG |
3'測序引物: | Sv40-polyA-R：GAAATTTGTGATGCTATTGC |
■ 質粒屬性
質粒宿主: | 哺乳細胞,腺病毒 |
質粒用途: | 蛋白表達 |
片段類型: |
|
片段物種: |
|
原核抗性: | Kan |
真核抗性: | G418
|
熒光標記: |
|
■ 質粒簡介
The vector pShuttle-CMV contains a multiple cloning site sandwiched between the CMV promoter and the SV40 polyadenylation signal and is suitable for insertion of a large cDNA (up to 6.6 kb). pShuttle contains only a multiple cloning site. This allows for the insertion of an entire expression cassette, including specialized promoters and termination signals (up to 7.5 kb). The regions indicated as arms are the stretches of sequence homology with pAdEasy-1 where the homologous recombination occurs. The R-ITR and L-ITR regions are short inverted terminal repeats (Left and Right) which have a role in replication of the viral DNA.

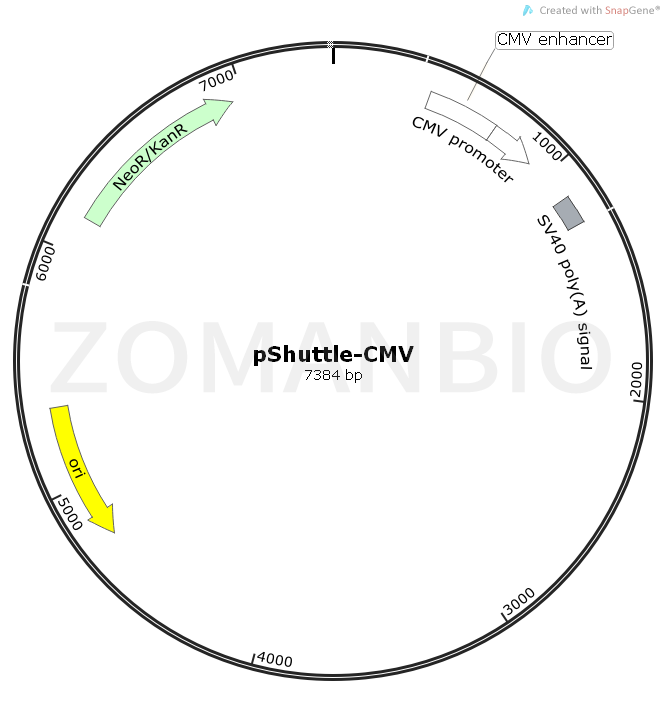

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK724pShuttle-CMV腺病毒質粒.txt
